MODELS: B100 & B60 SPECIFICATIONS
The B100 Watt and B60 Watt models are identical in all respects apart from wattage and labeling.
Operating voltage 230 - 240 volt 50 Hz A.C.
Auto-reseting thermal switch. Turn off at 100 deg. Celcius turn on at 80 deg. C.
Power consumption for 100 Watt model is 0.1 units per hour. Power consumption for 60 Watt model is 0.06 units per hour. Definition: 1 unit of electricity = 1000 watts or 1 kW for 1 hour expressed as kW-hr.
Dimensions 480mm long x 100mm Wide x 67mm Deep
Weight 907 grams or .907kg
White power cord 1.8 m long with molded Australian / New Zealand plug.
Fabricated in Aluminium and powder-coated in a durable cream colour.
Can be left running continuously.
Must be installed horizontally to a wall for adequate air flow and to prevent overheating. Four screws provided. WARNING DO NOT COVER A minimum clearance of 100mm above and below the unit is required for good air flow. Independently tested to comply with AS/ NZ electrical standards Approval # NSW 26582
Designed and Manufactured in New Zealand
The B100 Watt and B60 Watt models are identical in all respects apart from wattage and labeling.
Operating voltage 230 - 240 volt 50 Hz A.C.
Auto-reseting thermal switch. Turn off at 100 deg. Celcius turn on at 80 deg. C.
Power consumption for 100 Watt model is 0.1 units per hour. Power consumption for 60 Watt model is 0.06 units per hour. Definition: 1 unit of electricity = 1000 watts or 1 kW for 1 hour expressed as kW-hr.
Dimensions 480mm long x 100mm Wide x 67mm Deep
Weight 907 grams or .907kg
White power cord 1.8 m long with molded Australian / New Zealand plug.
Fabricated in Aluminium and powder-coated in a durable cream colour.
Can be left running continuously.
Must be installed horizontally to a wall for adequate air flow and to prevent overheating. Four screws provided. WARNING DO NOT COVER A minimum clearance of 100mm above and below the unit is required for good air flow. Independently tested to comply with AS/ NZ electrical standards Approval # NSW 26582
Designed and Manufactured in New Zealand
MODEL: T17 SPECIFICATIONS
Operating Voltage 230 - 240 Volt 50 Hz A.C.
Power consumption 0.017 units per hour
Definition: 1 unit of electricity = 1000 Watts or 1 kW for 1 hour
Dimensions 360 x 25 mm aluminium tube powder-coated in durable cream colour
Weight 389 grams
White power cord 1.8 meters long with molded Australian / New Zealand plug
Can be left running continuously
Must be mounted horizontally to a wall leaving a minimum clearance of 100mm above and below. Four screws provided.
WARNING DO NOT COVER. Two Year Warranty
Independently tested to comply with AS / NZ electrical standards Approval # NSW 26582
Designed and Manufactured in New Zealand
Model T17
Dampchaser® 17 Watt
Dampchaser® 17 Watt
Models B60 & B100
Dampchaser® 60 Watt & 100 Watt
Dampchaser® 60 Watt & 100 Watt
Installation
and Cautionary notes
and Cautionary notes
Installation
and Cautionary notes
and Cautionary notes
Supplier Declaration of Conformity (SDoC)

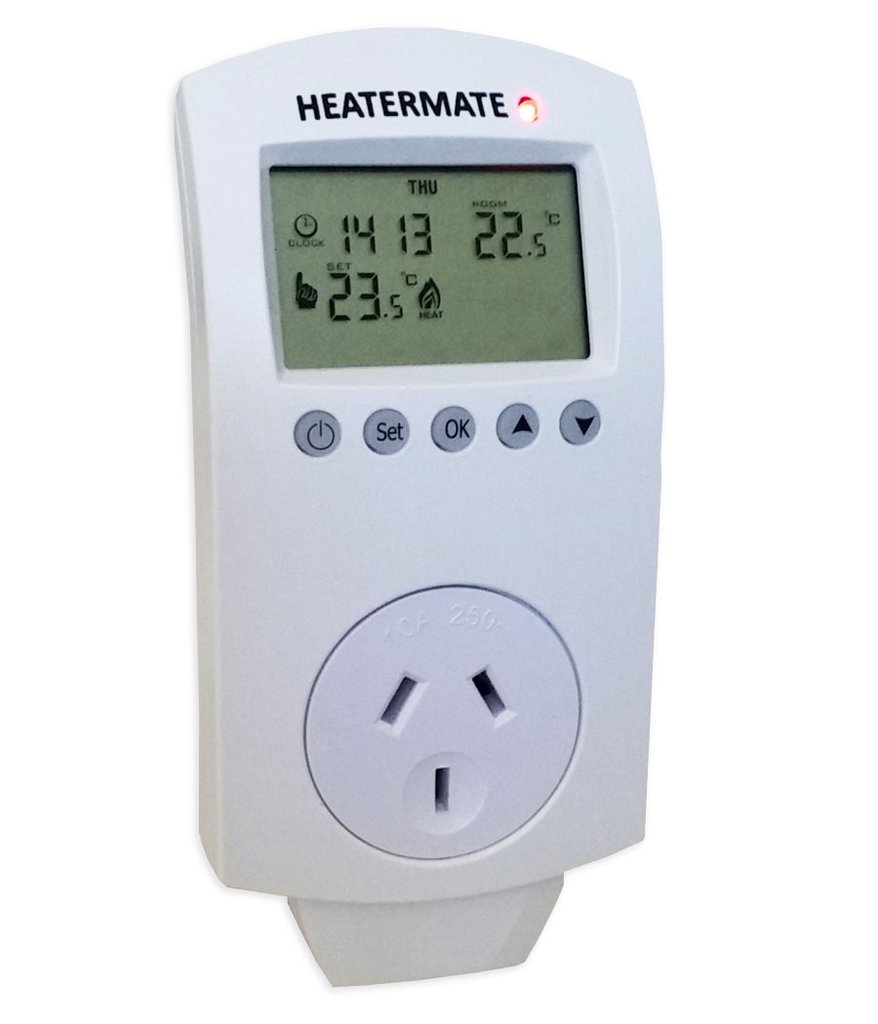

PLUG-IN DIGITAL TEMPERATURE CONTROLLER / TIMER: MODEL HY02TP
Operating voltage: 240V AC/ 50Hz;
Load (Max): 10A 2400W (resistive)
Temperature Measurement Precision: ±1°C
Temperature Setting Range: 1°C – 70°C.
Self-consumption power: <0.3W
Temperature Sensor: NTC.
Function: Heating or Cooling.
Electrical Approval N:SAA-173001-EA & N29542
Operating voltage: 240V AC/ 50Hz;
Load (Max): 10A 2400W (resistive)
Temperature Measurement Precision: ±1°C
Temperature Setting Range: 1°C – 70°C.
Self-consumption power: <0.3W
Temperature Sensor: NTC.
Function: Heating or Cooling.
Electrical Approval N:SAA-173001-EA & N29542
